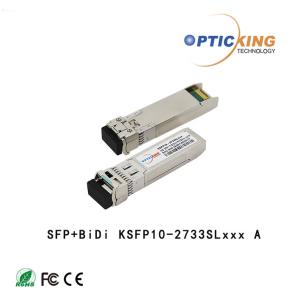

TX1270/RX1330nm BIDI SFP+ Transceiver Module SFP+ 10g 20km

  • 1
  • 2
  • 3

Brand Name : OPTICKING

Model Number : KSFP10-3327SL20X

Certification : CE RoHS FCC TUV

Place of Origin : China

MOQ : 5

Supply Ability : 15000Piece/Pieces per Month

Packaging Details : blister box

Wavelength : TX 1330nm/RX 1270nm

Data Rate : 10Gbps

Operating Temperature : 0°c~70°c Or -40°c~85°c

Output Power : -2~+3dBm

Distance : 20km

Connector : Simplex LC

Sensitivity : -14.4dBm

DDM Function : Yes

High Light : bidirectional SFP module 10G bidi SFP

Contact Now

10G BIDI SFP+TX1330/RX1270nm TX1270/RX1330nm 20km Optical Transceiver Optical Module

10G BIDI SFP+TX1330/RX1270nm TX1270/RX1330nm 20km Optical Transceiver Optical Module

Description and Characteristics

This transceiver is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 10Gb/s,it designed to be compliant with SFF-8472 SFP+ MSA.

The module data link up to 20km in 9/125um single mode fiber.opticking SFP+ transceivers provide a unique enhanced digital diagnostic monitoring interface, which
allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage. It also defines a sophisticated system of alarm and warning flags, which alerts end-users when particular operating parameters are outside of a factory set normal range.

Product Features

  1. Class 1 laser product EN 60825-1-standards
  2. Operating date rate up to 11.3Gbps
  3. Compliant with MSA SFP+ Specification SFF-8431
  4. Hot pluggable
  5. 3.3V single Power supply
  6. TTL singal detect indicator
  7. Operation Temperature Range : X means C( 0~70°C) ; I(-40~85°C).
  8. RoHS-6 Compliant

Ordering Information

Product Number Wavelength Date rate Distance TX Power RX Sens LD PD DDM
KSFP10-3327SL20X 1330nm/1270nm 10Gb/s 20KM -2~+3dbm <-14.4dbm DFB PIN YES
KSFP10-2733SL20X 1270nm/1330nm 10Gb/s 20KM -2~+3dbm <-14.4dbm DFB PIN YES
KSFP10-3327SL40X 1330nm/1270nm 10Gb/s 40KM -1~+4dbm <-16.5dbm DFB PIN YES
KSFP10-2733SL40X 1270nm/1330nm 10Gb/s 40KM -1~+4dbm <-16.5dbm DFB PIN YES
KSFP10-5549SL80X 1550nm/1490nm 10Gb/s 80KM 0~+4dbm <-23dbm EML APD YES
KSFP10-4955SL80X 1490nm/1550nm 10Gb/s 80KM 0~+4dbm <-23dbm EML APD YES
